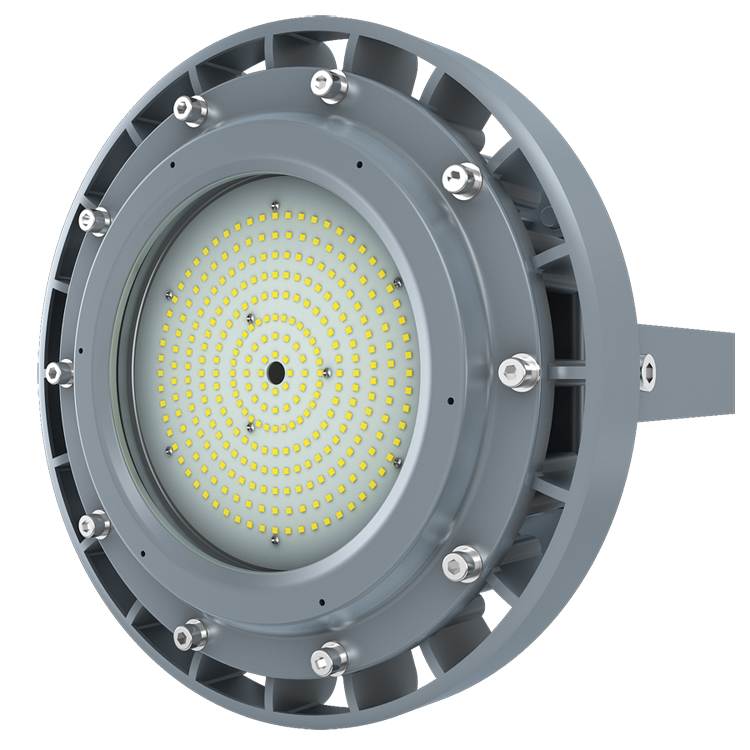

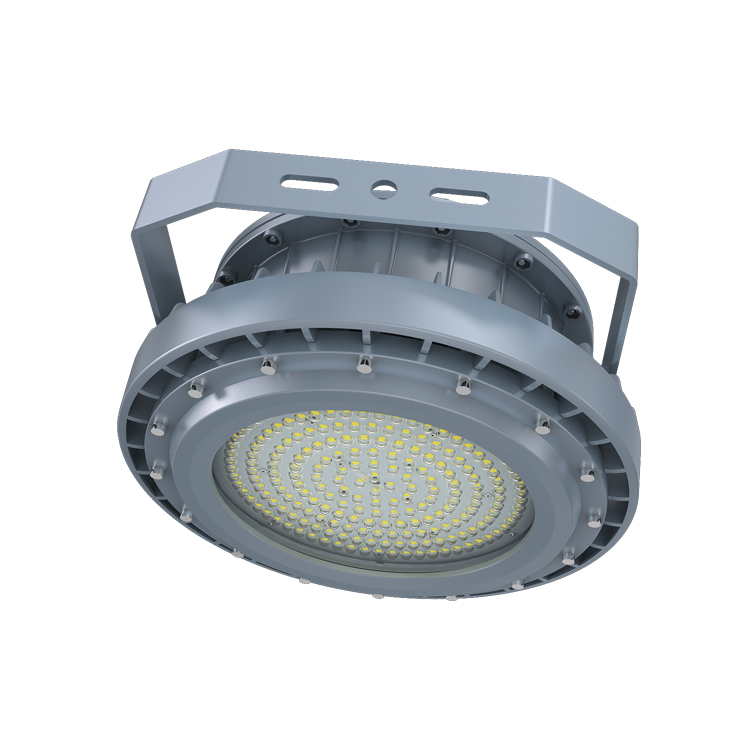

LED Explosion Proof Light

Rating and Certificates

Marking Atex

Il2 G Ex db op is IIB T5/T6 Gb

Il2 D Ex op is tb IIIC T80/90C Db IP66

Marking IECEX

Ex db op is IIB T5/T6 Gb

Ex op is tb IIIC T80/90C Db IP66

Marking UL844 (North American)

Class I,Division 1,Groups C,D

Class I,Division 2,Groups A,B,C,D

Class II,Division 1,Groups E,F,G

Class II,Division 2,Groups F,G

Class III

Marine Marking

UL 1598, UL1598A

ABS

Other Rating

IP 66

IK 10

Specification	LED Explosion Proof Light C Series 20-280W
Power	20W 40W 60W 80W 100W 150W 200W 250W 280W
Luminous flux	140 lm/w
Lumen	2800lm-39200lm
Input Voltage	AC 100-277/200-480V
Beam Angle	40°/60°/90°/120°
Color Temperature	2700K-7000K
CRI	Ra> 70
IP Rating	IP66
Warranty	5 Years Warranty
Lifespan	50,000 hours
Material	Tempered glass & PC lens, Copper-free aluminum
Installation	Ceiling, Wall, Hook, Pole
Application	Heavy Industrials Storage Facility Paper mills Wastewater Treatment Plants Loading Docks Platforms Offshore Environments Chemical Processing Facility Power Plants Petrochemical Processing Facility Metallurgical Industry Coal Mine Food and Alcohol industry
