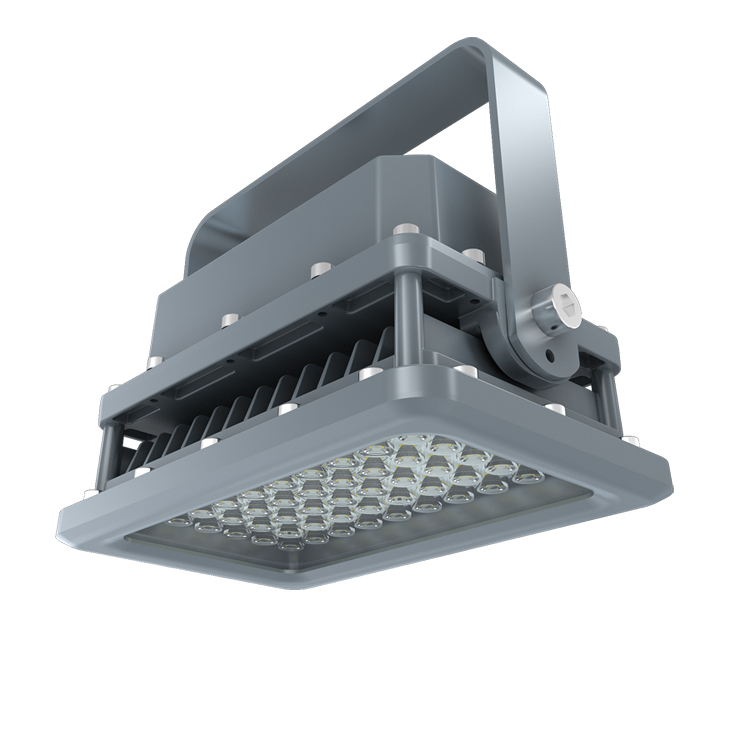

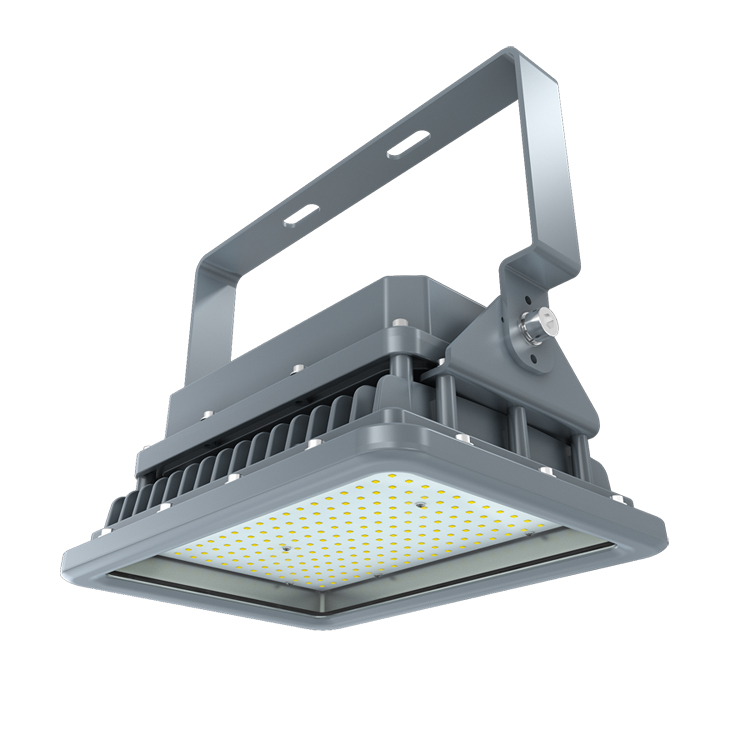

LED Explosion Proof Light

Rating and Certificates
Marking Atex

II 3 G Ex ec IIC T3 Gc

Il 2 D Ex tb IIIC T103°C Db IP66

II 2 G EX mb eb IIC T3 Gb

II 2 D EX tb IIIC T125°C Db IP66

Marking IECEX

Ex ec IIC T3 Gc

Ex tb IIIC T103°C Db IP66

EX mb eb IIC T3C Gb

EX tb IIIC T125°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL 1598, UL1598A

ABS

Other Rating

IP 66

Specification	LED Explosion Proof Light A Series 20-400W
Power	20W 40W 60W 80W 100W 150W 180W 200W 250W 300W 400W
Luminous flux	140 lm/w
Lumen	2800lm-56000lm
Input Voltage	AC 100-277/200-480V
Beam Angle	40°/60°/90°/120°
Color Temperature	3000K-6500K
CRI	Ra> 70
IP Rating	IP66
Warranty	5 Years Warranty
Lifespan	50,000 hours
Material	Tempered glass & PC lens, Die-cast aluminum
Installation	Ceiling, Wall, Hook, Trunnion, Pole, Stanchion
Application	Heavy Industrials Storage Facility Paper mills Wastewater Treatment Plants Loading Docks Platforms Offshore Environments Chemical Processing Facility Power Plants Petrochemical Processing Facility Metallurgical Industry Coal Mine Food and Alcohol industry
