LED Explosion Proof Light

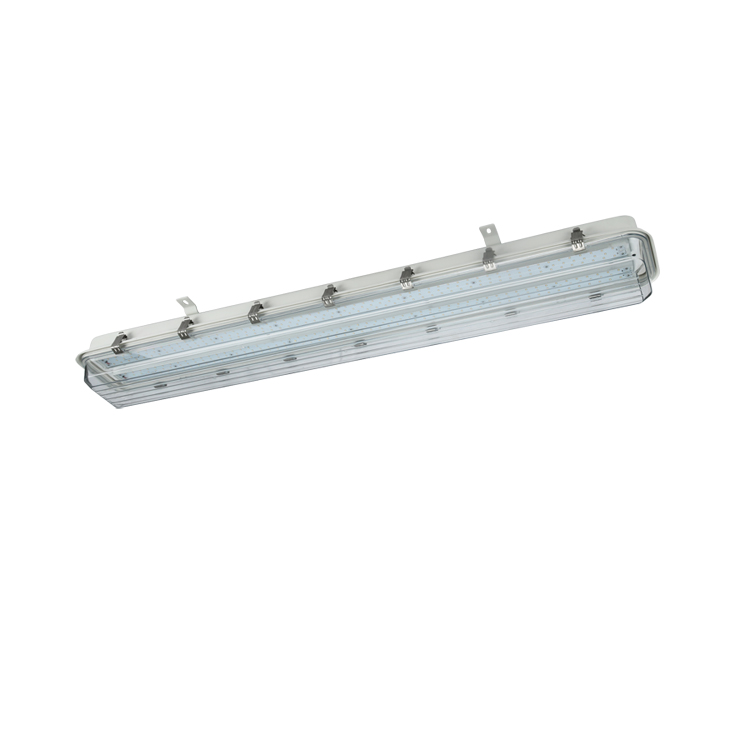

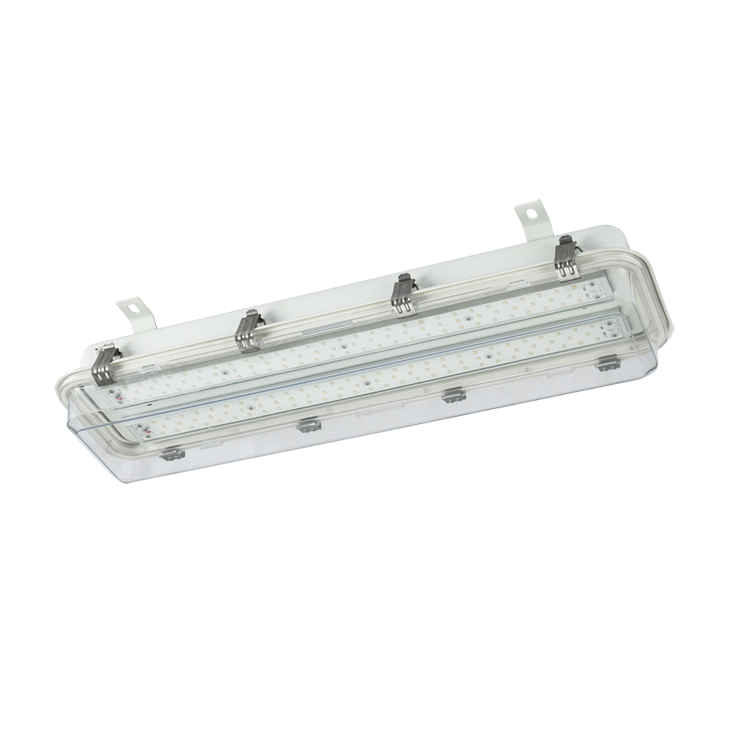

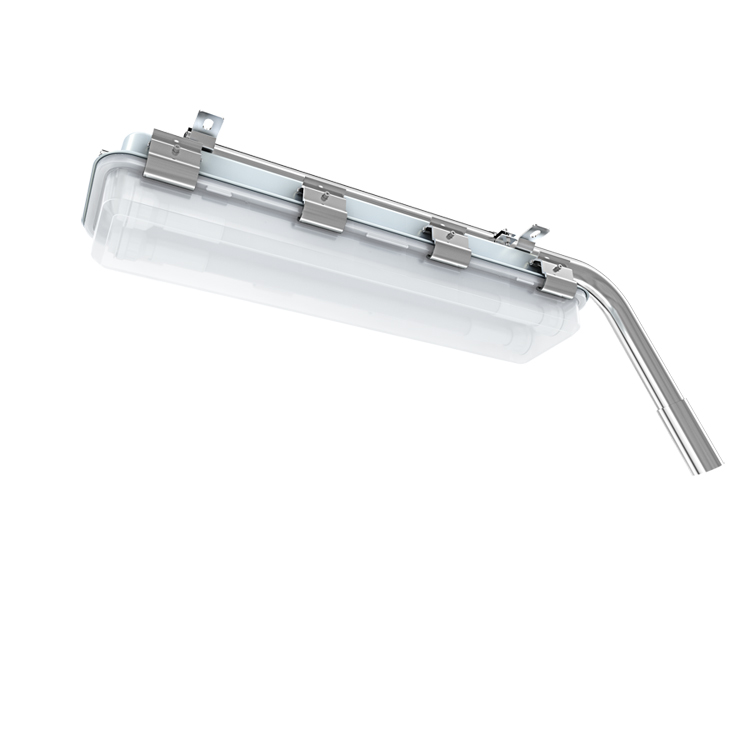

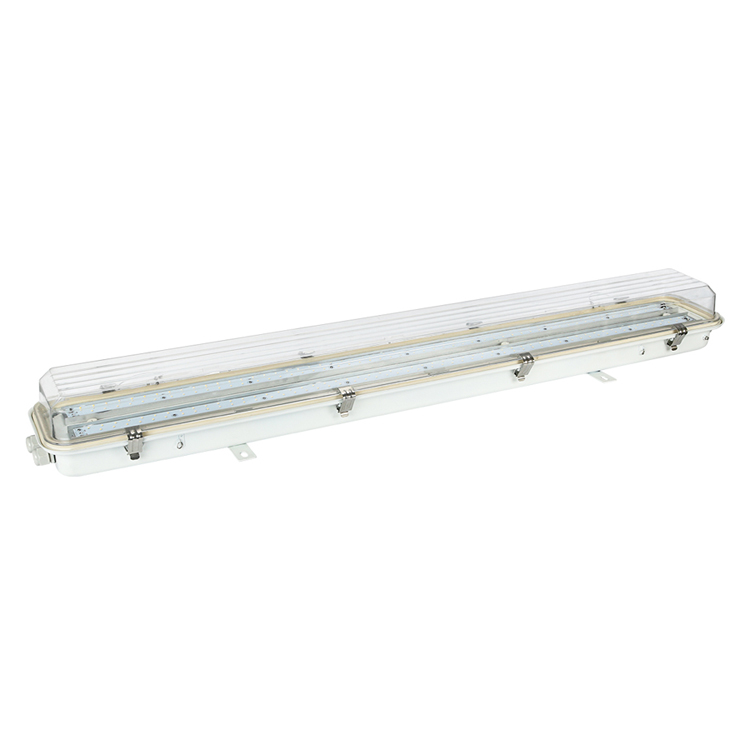

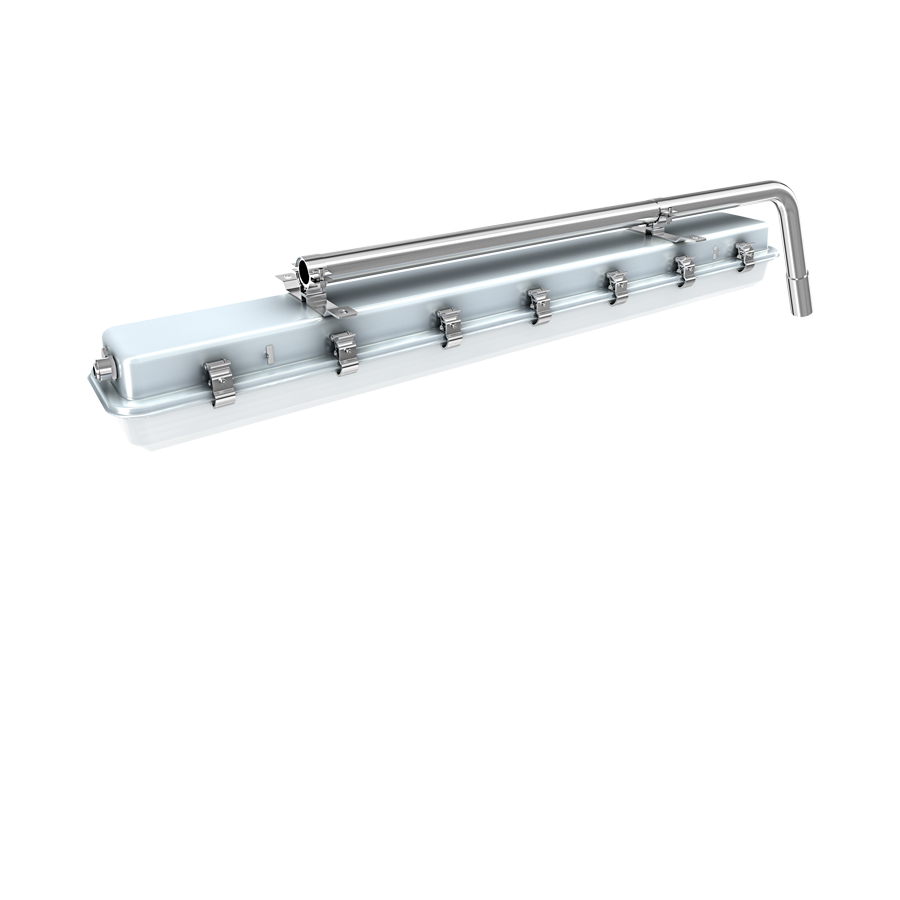

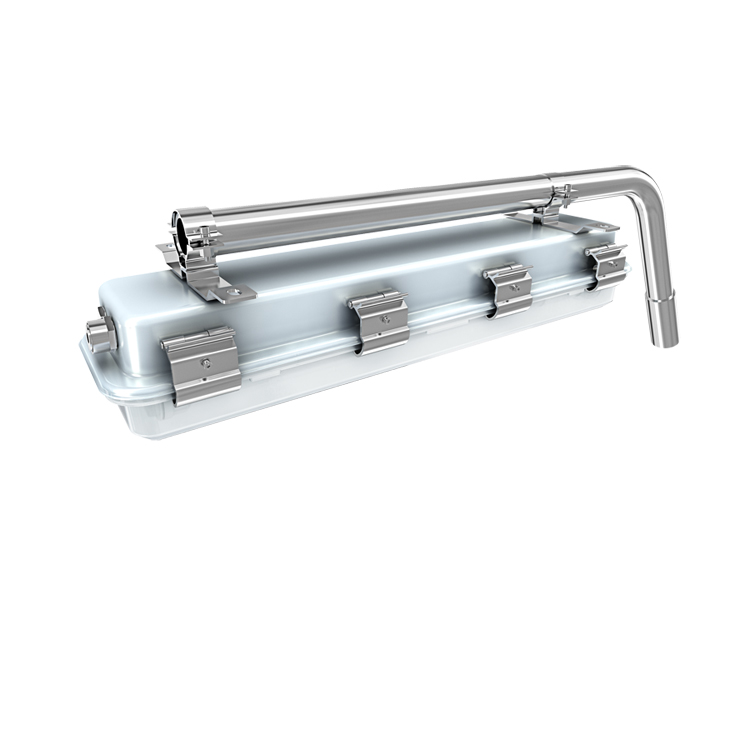

Product description: LED Explosion Proof Light R Series 20-60W
INQUIRY

Rating and Certificates

UL844– Hazardous Locations
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
UL 1598 - Luminaires
UL 1598A
UL 8750 - Light Emitting Diode (LED)
Equipment for use in Lighting Product
UL924 - Emergency Lighting Equipment
DLC 5.1
ABS
IP66
IK10
1200 hours Salt spray

ATEX Marking:
II 2GD
Ex db eb mb IIC T6/T5 Gb
Ex tb IIIC T80°C/T95°C Db IP66
IECEx Marking:
Ex db eb mb IIC T6/T5 Gb
Ex tb IIIC T80°C/T95°C Db IP66

Specification	LED Explosion Proof Light R Series 20-60W
Power	20W 30W 40W 50W 60W
Luminous flux	136.5 lm/w
Lumen	2730lm-8190lm
Input Voltage	AC 120-277V
Beam Angle	120°
Color Temperature	2700K/400K/500K
CRI	Ra> 80
IP Rating	IP66
Warranty	5 Years Warranty
Lifespan	50,000 hours
Material	Transparent fiberglass-reinforcedpolycarbonate (standard) Diffuse fiberglass-reinforcedpolycarbonate (optional), SUS 304 stainless steel
Installation	Ceiling, rope, and pole mount
Application	Locations requiring continuous and consistent light levels. Marine applications, such as engine rooms, decks and walkways. Pulp and paper production facilities. Water/wastewater treatment facilities. Petrochemical facilities.
